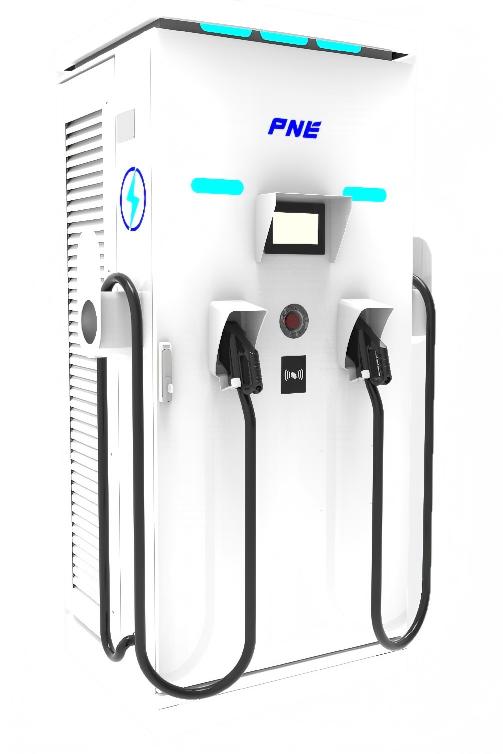

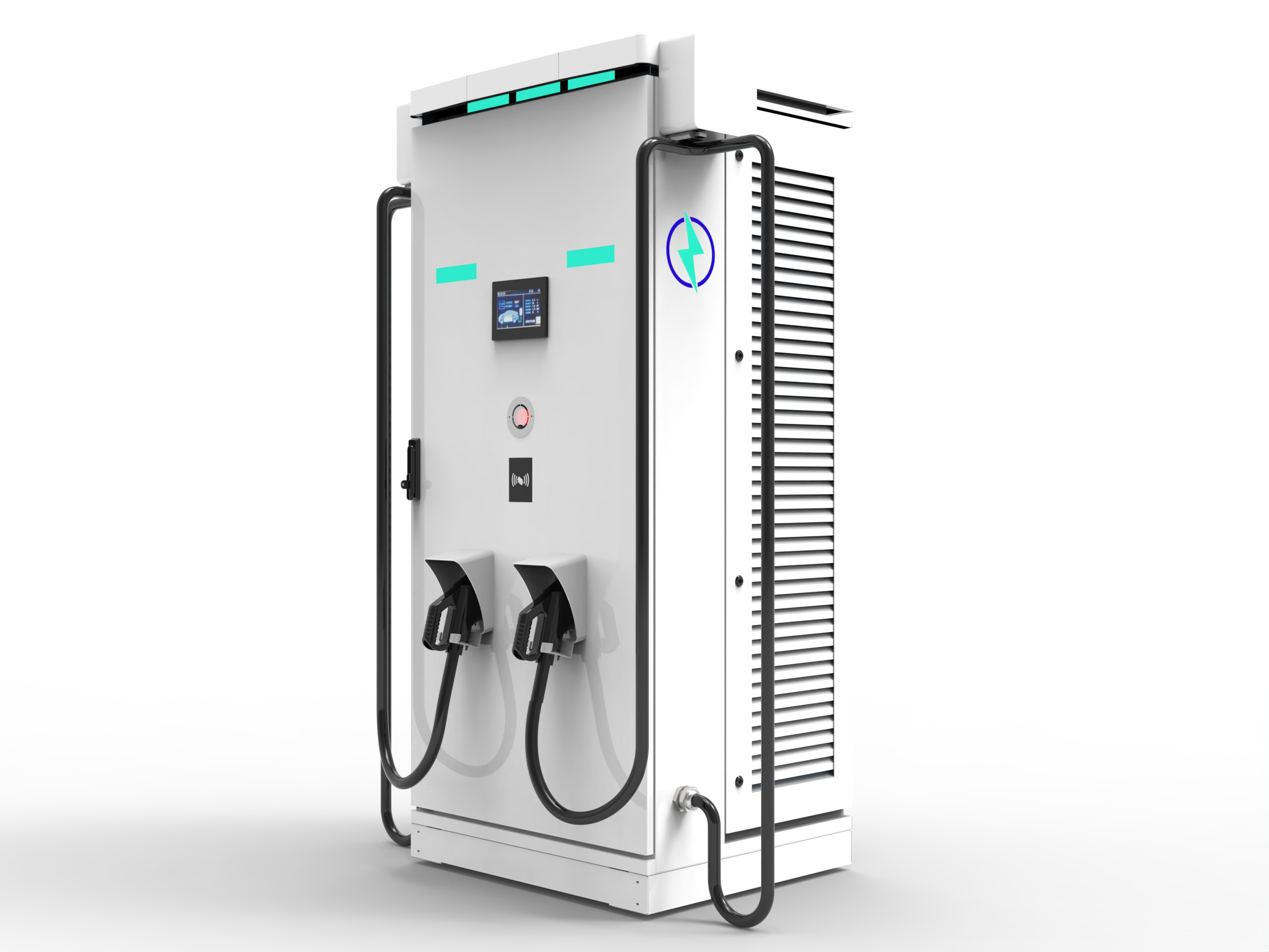

CCS2 DC Quick Charger
CHARACTERISTIC:

1. No neutral wire, three-phase four wire system, saving 20% of power distribution installation cost.

2. 200V ~ 1000V output voltage, compatible with vehicles of different manufacturers. Lower constant power point, 30% shorter charging time

3. Record charging information in real time, predict faults and reduce losses. Remote diagnosis, remote upgrade, reduce operating costs.

4. High protection grade, IP54, suitable for harsh environment

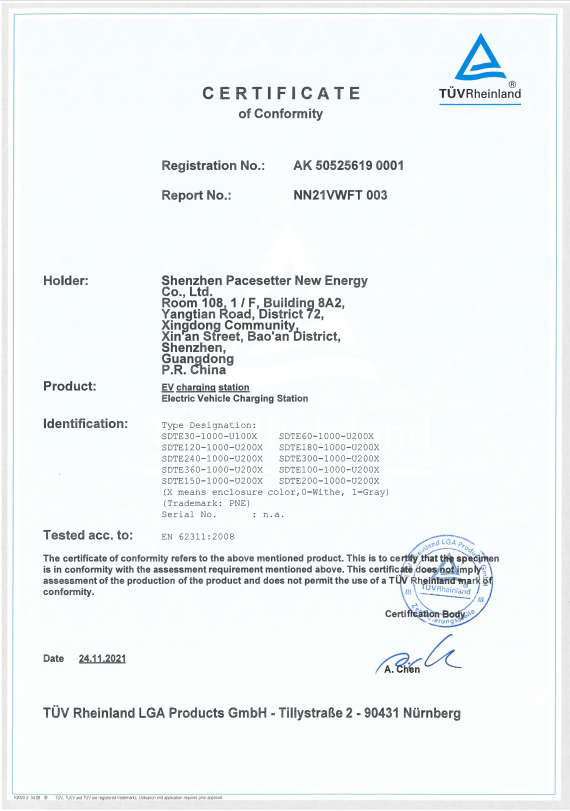

5. Obtain the strictest CE certification of TUV, Germany. And optimize it in combination with the local electrical safety standards in Europe.

6. Support OCPP1.6, with high background communication compatibility

7. Optional card reader, support credit card payment

PRODUCT DETAILS
Input Line voltage (VAC) AC 400±10%
AC power connection 3P +PE
Output Output current (A) 0~200
Output voltage range (Vdc) 200~1000
Charging plugs 2
Whole output power(kW) 30~360
General Standard CCS2 type, IEC/EN 61851, IEC/EN 62196
IP level IP54
Communication OCPP1.6
Cooling Air Cooled
Full load efficiency ≥ 94%
External dimensions (H*W*D, mm) 2000*890*790
Noise (dB) <72(30~360kW Standard edition)
Noise (dB) <65(30~180kW Low noise edition)
Environmental Ambient temperature (℃) -30~+50
Storage temperature (℃) -40~+70
