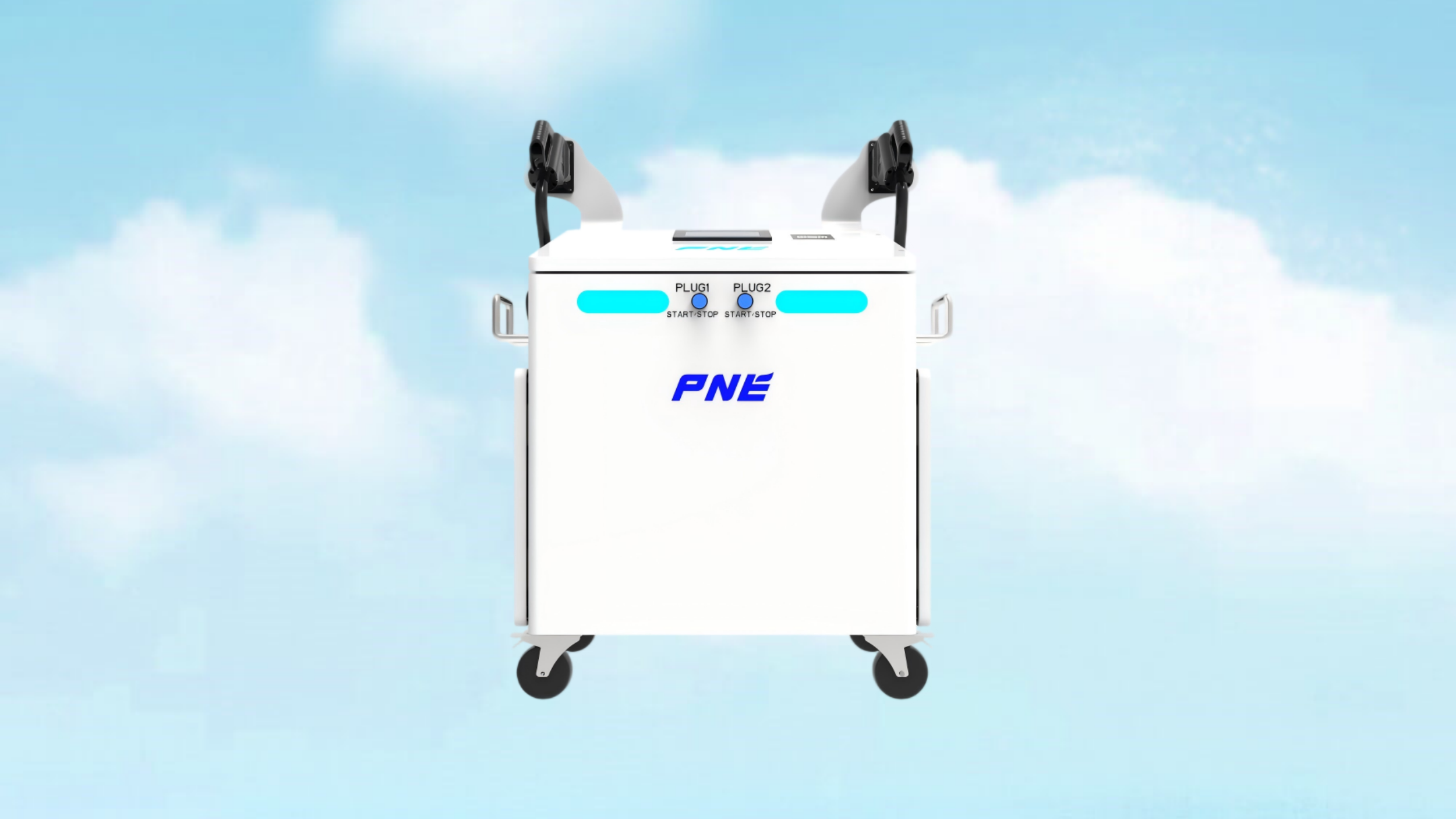

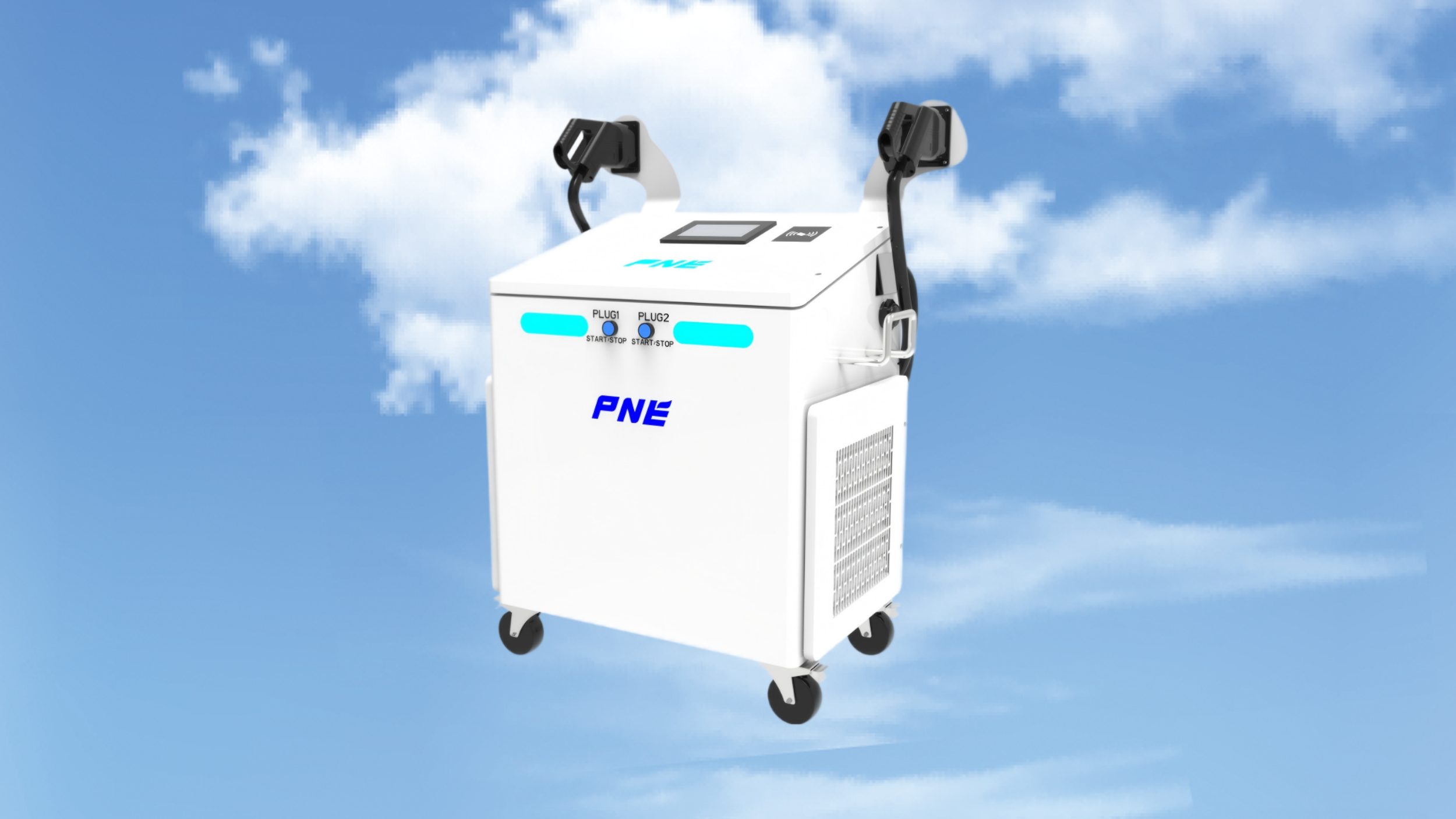

CCS2 60kW Portable DC Charger
CHARACTERISTIC:

1. Portable and flexible installation.

2. One-key switch on and off, rich monitoring and display contents.

3. Module self identification, customers can expand by themselvesplug-in frame design, easy maintenance

4. Support 4G connection


PRODUCT DETAILS
Input Line voltage (VAC) AC 400±10%
AC power connection 3P +PE
Output Output current (A) 150
Output voltage range (Vdc) 200~1000
Charging plugs 2
Whole output power(kW) 60
General Standard EC 61851, IEC 62196,DIN70121 and ISO15118
IP level IP54
Cooling Air Cooled
Full load efficiency ≥ 94%
External dimensions (H*W*D, mm) 1150*897*597.6
Environmental Ambient temperature (℃) -30~+50
Storage temperature (℃) -40~+70
